| Reducer |
PRODUCT REFERENCE
|
DIA.
mm |
A
mm |
L
mm |
WEIGHT
KG/PIECE |
WEMA23010 |
50x40 |
5 |
60 |
0.3 |
WEMA23022 |
75x50 |
12.5 |
80 |
0.7 |
WEMA23031 |
100x50 |
26 |
80 |
1.0 |
WEMA23033 |
100x75 |
13.5 |
90 |
1.1 |
WEMA23051 |
150x75 |
38 |
90 |
2.2 |
WEMA23053 |
150x100 |
25 |
105 |
2.2 |
WEMA23063 |
200x100 |
50 |
115 |
4.0 |
WEMA23065 |
200x150 |
25 |
125 |
4.3 |
WEMA23075 |
250x150 |
57 |
135 |
6.8 |
WEMA23076 |
250x200 |
32 |
145 |
7.0 |
WEMA23085 |
300x150 |
83 |
150 |
10.7 |
WEMA23086 |
300x200 |
58 |
160 |
11.4 |
WEMA23087 |
300x250 |
26 |
170 |
12.4 |
|
| |
|
|
| |
|
|
|
|
| Plug |
PRODUCT REFERENCE |
DIA.
mm |
L
mm |
WEIGHT
KG/PIECE |
WEMA47010 |
50 |
30 |
0.2 |
WEMA47025 |
75 |
35 |
0.5 |
WEMA47030 |
100 |
40 |
0.7 |
WEMA47050 |
150 |
50 |
1.3 |
WEMA47060 |
200 |
60 |
3.1 |
WEMA47070 |
250 |
70 |
6.0 |
WEMA47080 |
300 |
80 |
9.5 |
|
| |
|
|
| |
|
|
|
|
| |
|
| P-Trap |
PRODUCT REFERENCE
|
DIA.
mm |
X1
mm |
X2
mm |
X3
mm |
L
mm |
WEIGHT
KG/PIECE |
WEMA50010 |
50 |
200 |
60 |
75 |
180 |
2.8 |
WEMA50030 |
100 |
300 |
110 |
75 |
310 |
8.0 |
WEMA50050 |
150 |
388 |
160 |
80 |
450 |
17.5 |
|
| |
|
|
| |
|
|
|
|
| |
|
| Anti-Siphonic Trap |
PRODUCT REFERENCE
|
DIA.
mm |
L
mm |
H
mm |
R
mm |
WEIGHT
KG/PIECE |
WEMA50110 |
50 |
184 |
251 |
80 |
3.7 |
WEMA50125 |
75 |
240 |
275 |
80 |
9.3 |
WEMA50130 |
100 |
322 |
372 |
109 |
16.8 |
WEMA50140 |
150 |
397 |
498 |
200 |
24.6 |
|
| |
|
|
| |
|
|
|
|
| |
|

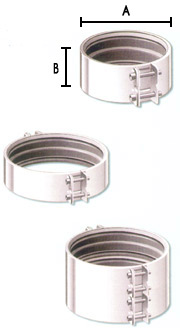

| S.S.304/S.S.316 Coupling |
PRODUCT REFERENCE |
DIA.
mm |
A
mm |
B
mm |
WEIGHT
KG/PIECE |
WEMA60000 |
40 |
56 |
56 |
0.12 |
WEMA60010 |
50 |
73 |
56 |
0.15 |
WEMA60015 |
75 |
96 |
56 |
0.22 |
WEMA60030 |
100 |
127 |
56 |
0.25 |
WEMA60050 |
150 |
172 |
69 |
0.40 |
PRODUCT REFERENCE |
DIA.
mm |
A
mm |
B
mm |
WEIGHT
KG/PIECE |
WEMA60060 |
200 |
222 |
69 |
0.50 |
PRODUCT REFERENCE |
DIA.
mm |
A
mm |
B
mm |
WEIGHT
KG/PIECE |
WEMA60070 |
250 |
290 |
140 |
1.50 |
WEMA60080 |
300 |
340 |
140 |
2.00 |
|
| |
|
|
|
|
|
